tellus point round xs

tellus point round xs
pureWhite

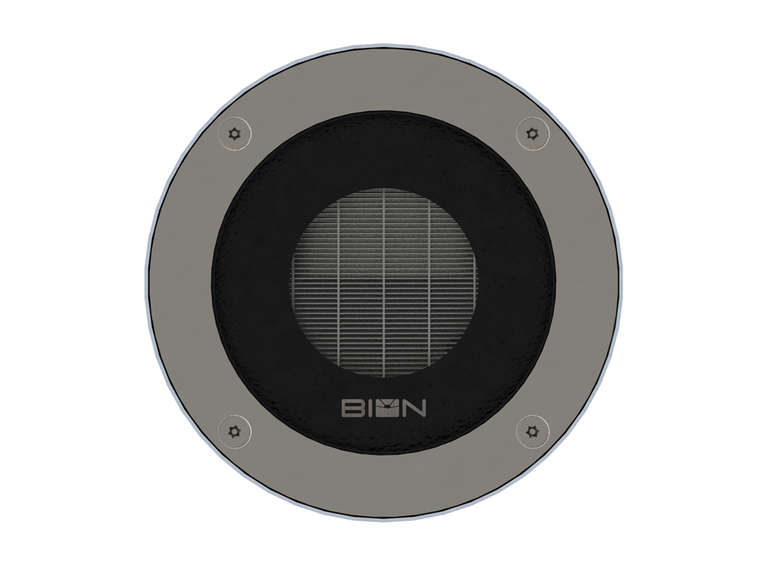

The recessed floor light for minimal space architectural illumination

With a  high light output at minimal space, tellus xs defines a new class of floor light fixtures. Its Color Rendering Index mostly exceeds 80, at times even a stunning 95 and more, provided by various beam shaping options.

Pictures

Quicklinks

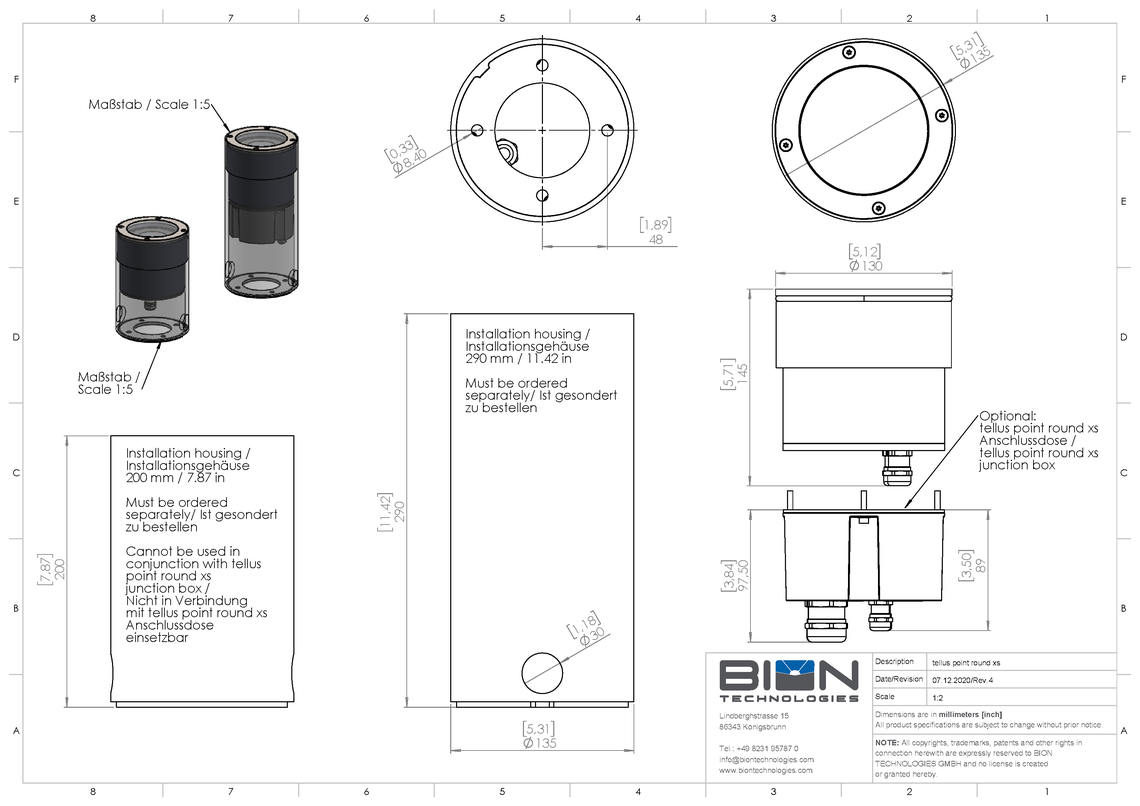

Dimensions

130 mm x 130 mm x 119 mm [L x W x H]
5.12 in x 4.33 in x 4.69 in [L x W x H]

Height incl. installation housing short / long: 200 mm / 290 mm
Height incl. installation housing short / long: 7.87 in / 11.42 in
Luminaire Type
  pureWhite
pureWhite Color Temperatures2700 K, 3000 K, 3500 K, 4000 K
* Project-specific color temperatures for pureWhite available.
Beam Angles
Lumen Output550 lm
Without glare protection
Light Source1 x LED
Color Rendering Index

Warm White, Neutral White: Ra > 80
Cool White: Ra > 70
AntiglareHoneycomb, linear louver, customized glare control
LED-Binning
MacAdam Ellipses Binning3
DimmingNon-dimmable | Dimmable (DMX , IOT , DALI)
Input Voltage
Power Supply: Internal | 100 - 240, 277 VAC (50 - 60 Hz) | 127 - 431 VDC
Power ConsumptionMax. 12 W
Protection ClassI
Storage Temperature-40 °C / +80 °C | -40 °F / +176 °F
Operating Temperature-40 °C / +40 °C | -40 °F / +104 °F
Start-up Temperature-25 °C / +40 °C | -13 °F / +104 °F
Lumen Maintenance [L70]65’000 h @ 25 °C (77 °F) | 40‘000 h @ 40 °C (104 °F)
LED-ClassClass 2 LED product
HousingAluminum die casting
Housing Color(s)Black anodized
LensTempered safety glass
FrameStainless steel
Weight1,3 kg (2.9 lbs)
Load500 kg | 1100 lbs
Ingress ProtectionIP67
Environment
Impact ProtectionIK09
Certification

Accessories

tellus point round xs installation housing
tellus point round xs installation housing
tellus point round xs connection box
tellus point round xs connection box

Your order code:

  Send request When the background gets green, your selection is complete!

Please choose from the options below.

* mandatory fields

TYP - LUMINOUS COLOR
  1. pureWhite - 2700 K
  2. pureWhite - 3000 K
  3. pureWhite - 3500 K
  4. pureWhite - 4000 K
DIMMING
  1. Non-dimmable
  2. Dimmable - DMX
  3. Dimmable - IOT
  4. Dimmable - DALI
BEAM ANGLE
  1. 10° x 10°
  2. 22° x 22°
  3. 34° x 34°
  4. 60° x 60°
  5. 8° x 31°
  6. 10° x 40°
  7. 12° x 60°
  8. 12° x 90°
  9. 30° x 60°
  10. 30° x 58° (Tilt C0: -14°)
  11. 30° x 11° (Tilt C0: -14°)
WIRING
  1. CE - Europe
  2. ETL - North America
GLARE PROTECTION
  1. OP - No glare protection
  2. HL - Honeycomb louver
  3. LL17 - Linear louver 17°
  4. LL00 - Linear louver 0°
  5. CGC - customized glare control

Use LL17 only with beam angle www or wwn

LEADERCABLE LENGTH
  1. 1M - 1 m (3.3 ft)
  2. 3M - 3 m (10 ft)
  3. 6M - 6 m (19.7 ft)
  4. 9M - 9 m (29.5 ft)
  5. 15M - 15 m (49.2 ft)

Load Table 230 V

Recommended maximum count of fixtures per circuit breaker.

230 VB10B16C10C16
tellus point round-17-29
