funis m round 1000

funis m round 1000
pureWhite

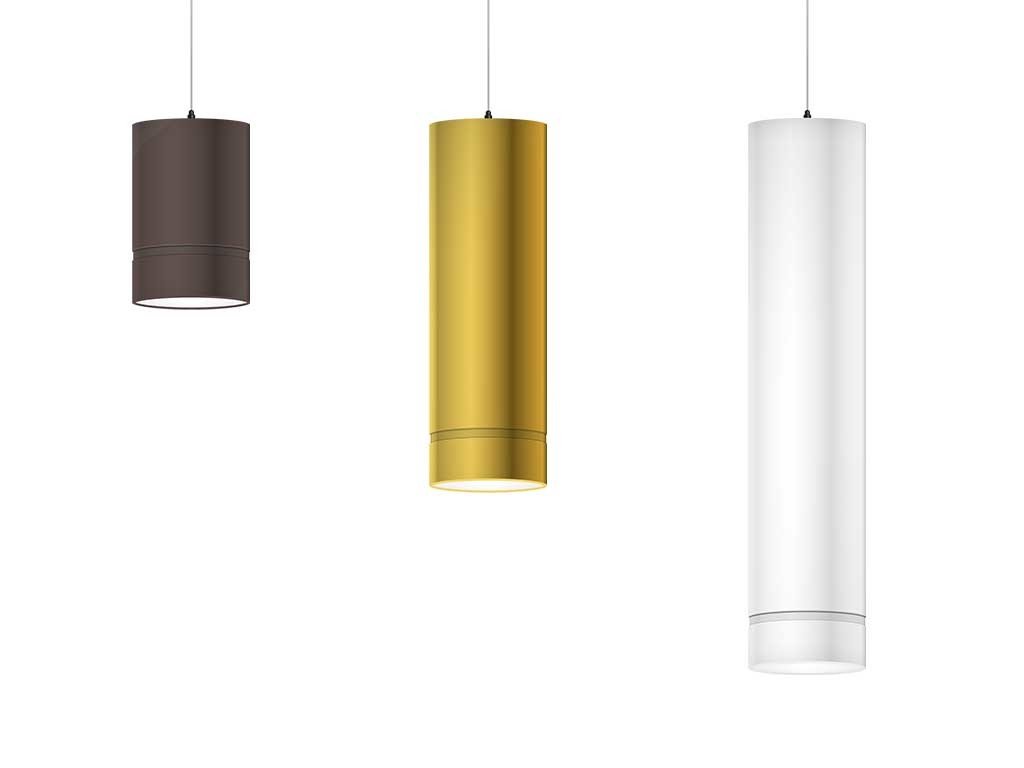

Stringent design meets circular pendant LED lamp

Along with an angled shape, funis offered itself for a rounded planform, shedding none of its design stringency, but contrasting playfully with its straight-lined counterpart. Individualized color options offer full compliance with all demands to Cl conformity.

Quicklinks

DimensionsDiameter: 100 mm / 3.94 in
Standard Unit Lengths155 mm, 310 mm, 465 mm
6.11 in, 12.21 in, 18.31 in
Luminaire Type
  pureWhite
pureWhite Color Temperatures3000 K, 4000 K
* Project-specific color temperatures for pureWhite available.
Beam Angles
Lumen Output1310 lm
Light Source1 x LED
Color Rendering Index Ra >= 80
* Others available upon request
LED-Binning
MacAdam Ellipses Binning3
DimmingNon-dimmable | Dimmable (TRIAC)

CE: non-dimmable, dimmable via Triac AC
ETLus: non-dimmable, dimmable via Triac AC
cETL: non-dimmable
Input Voltage
Power Supply: Internal | 100 - 240, 277 VAC (50 - 60 Hz) | 127 - 431 VDC
Power ConsumptionMax. 12 W
Protection ClassII
InrushNon-dimmable:
277 V: Cold Start 10A(tD=90µs gemessen an 50% Ipeak)
230 V: Cold Start 70A(tD=120µs gemessen an 50% Ipeak)
110 V: Cold Start 34A(tD=120µs gemessen an 50% Ipeak)
Dimmable - TRIAC:
277 V: Cold Start 10A(tD=90µs gemessen an 50% Ipeak)
230 V: Cold Start 10A(tD=90µs gemessen an 50% Ipeak)
110 V: Cold Start 10A(tD=90µs gemessen an 50% Ipeak)
Storage Temperature-20 °C / +30 °C | -4 °F / +82 °F
Operating Temperature-20 °C / +30 °C | -4 °F / +82 °F
Start-up Temperature-20 °C / +30 °C | -4 °F / +82 °F
Lumen Maintenance [L70]50'000 h @ 25 °C / 77 °F
LED-ClassClass 2 LED-Product
HousingAluminium
Housing Color(s)
Signal
Signal white RAL 9003
Jet
Jet black RAL 9005
Dark
Dark grey RAL 9023
Grey
Grey brown RAL 8019
Gold
Gold RAL 1036
* Others colors available upon request
LensPMMA
Ingress ProtectionIP20
Environment
Certification

Load Table 230 V

Recommended maximum count of fixtures per circuit breaker.

230 VB10B16C10C16D10D16
Non-dimmable111718293759
Dimmable - TRIAC801288012880128

Load Table 110 V

Recommended maximum count of fixtures per circuit breaker.

110 VB10B16C10C16D10D16
Non-dimmable588141829
Dimmable - TRIAC365836583658

Load Table 277 V

Recommended maximum count of fixtures per circuit breaker.

277 VB10B16C10C16D10D16
Non-dimmable801288012880128
Dimmable - TRIAC801288012880128
