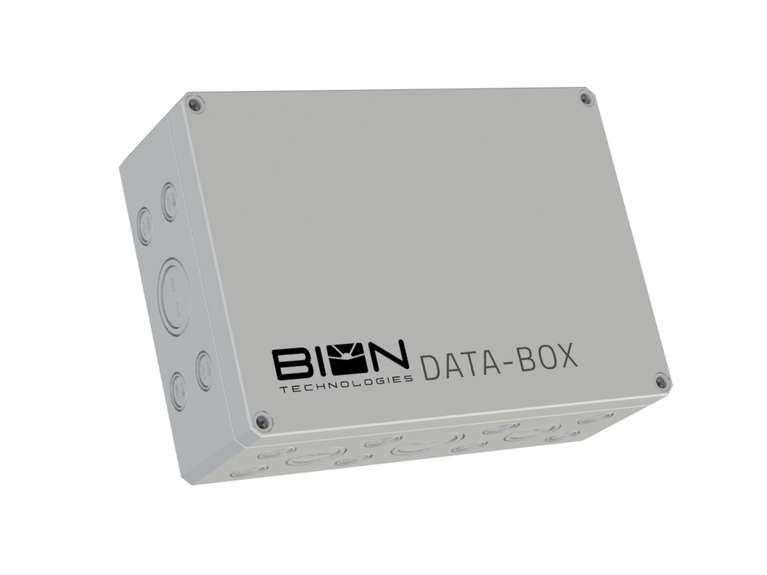

DATA-BOX
DMX-INOUT-4CHOUT
The DATA-BOX amplifies an incoming DMX signal and makes it available at four outputs and at a loop-through port. This enables the safe transmission of the DMX protocol as well as the setup of star topologies.
DATA-BOXs are designed with metric pre-formed knockouts on all four sides. The DATA_BOX is made of glass fibre reinforced polycarbonate in light grey colour RAL 7035. The material is UV-resistant (UL 746C F1) and self-extinguishing (UL 94 V0).
| Dimensions | 254 mm x 180 mm x 90 mm [W x H x D] |
| Input Voltage | Power Supply: External 10 - 48 VDC (Power supply not included)
|
| Power Consumption | Max. 10 W |
| Operating Temperature | -25 °C / +40 °C | -13 °F / +104 °F |
| Housing | Polycarbonate GF10 |
| Housing Color(s) | RAL 7035 (Light gray) |
| Ingress Protection | IP66 |
| Environment |  |
| Impact Protection | IK08 |
| Certification |    |
| Additional Information | DMX IN/THROUGH |
Produktdaten
| Input | DMX IN/THROUGH |
| Output | 4x Ports |
