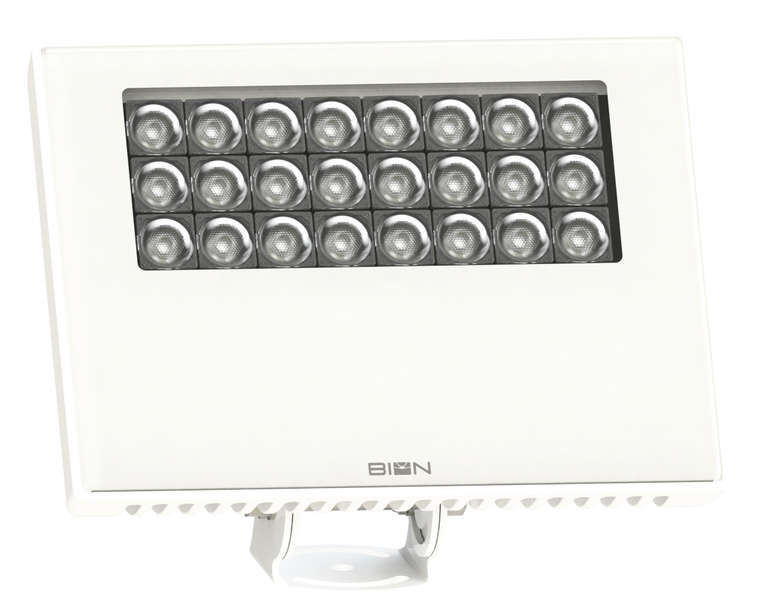

coma l

coma l
pureWhite | pureColor

Highpower-LED-fixture for architectural illumination.

Accomplished design features paired with highly flexible light technology of eight different beam angles is what makes coma l the ideal solution for a multitude of tasks in classical facade illumination. Along with the standard color temperatures of 3000 K and 4000 K, it can be adjusted to various project specific color temperatures.

Pictures

Quicklinks

Dimensions

250 mm x 182 mm [L x D]
9.85 in x 7.17 in [L x D]
Luminaire Type
  pureWhite
  pureColor
pureWhite Color Temperatures2200 K, 2700 K, 3000 K, 3500 K, 4000 K
* Project-specific color temperatures for pureWhite available.
pureColor LED-ColorsRed, Green, Blue, Amber
* Project-specific colors for pureColor available.
Beam Angles
Lumen Output2828 lm

pureColor Red 1380 lm
pureColor Green 2476 lm
pureColor Blue 1095 lm
pureColor Amber 2332 lm
Light Source24 x LED
Color Rendering Index Ra >= 80
LED-Binning
MacAdam Ellipses Binning3
DimmingNon-dimmable | Dimmable (DMX , 0 - 10 V , IOT)
Input Voltage
Power Supply: Internal | 100 - 240, 277 VAC (50 - 60 Hz) | 127 - 431 VDC
Power ConsumptionMax. 45 W
Power Factor Correction

> 0,98 -> 115 VAC @ max. Output
> 0,95 -> 230 VAC @ max. Output
> 0,91 -> 277 VAC @ max. Output
Protection ClassI
InrushCOLD START 55A@230VAC / 27A@110VAC (twidth=265µs measured at 50% Ipeak)
Storage Temperature-40 °C / +80 °C | -40 °F / +176 °F
Operating Temperature-40 °C / +40 °C | -40 °F / +104 °F
Start-up Temperature-25 °C / +40 °C | -13 °F / +104 °F
Lumen Maintenance [L70]65’000 h @ 25 °C (77 °F) | 40‘000 h @ 40 °C (104 °F)
LED-ClassClass 2 LED-Product
HousingAluminium die casting
Housing Color(s)
White
White powdercoated
Black
Black powdercoated
LensSafety glass, printed
Weight
2,8 kg(6.17 lbs)
Ingress ProtectionIP65
Environment
Impact ProtectionIK08
Certification

Accessories

wall mount arm
wall mount arm

Your order code:

  Send request When the background gets green, your selection is complete!

Please choose from the options below.

* mandatory fields

TYP - LUMINOUS COLOR
  1. pureWhite - 2200 K
  2. pureWhite - 2700 K
  3. pureWhite - 3000 K
  4. pureWhite - 3500 K
  5. pureWhite - 4000 K
  6. pureColor - Red
  7. pureColor - Green
  8. pureColor - Blue
  9. pureColor - Amber
DIMMING
  1. Non-dimmable
  2. Dimmable - DMX
  3. Dimmable - 0 - 10 V
  4. Dimmable - IOT
BEAM ANGLE
  1. 7° x 7°
  2. 13° x 13°
  3. 30° x 30°
  4. 66° x 66°
  5. 90° x 114°
  6. 8° x 31°
  7. 11° x 45°
  8. 12° x 60°
  9. 14° x 100°
  10. 30° x 60°
WIRING
  1. CE - Europe
  2. ETL - North America
HOUSING COLOR
  1. WH - White powdercoated
  2. BL - Black powdercoated

Load Table 230 V

Recommended maximum count of fixtures per circuit breaker.

230 VB16C16D16B32C32
coma l916321832

Load Table 110 V

Recommended maximum count of fixtures per circuit breaker.

110 VB16C16D16B32C32
coma l4816916
