cambium xl

cambium xl

Appealing design combined with user-friendliness

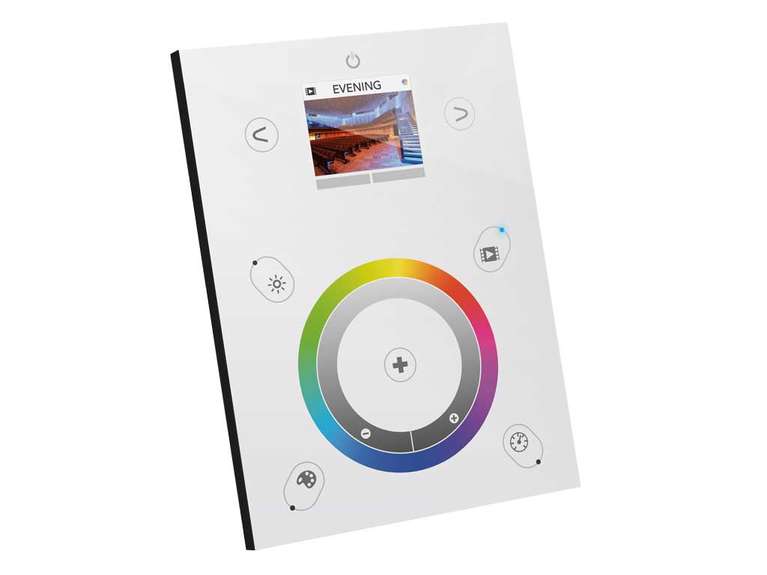

The DMX-controller cambium xl features a touch-sensitive glass display that allows for convenient changes in light effects. The cambium xl comes with additional software, that allows you to quickly program the controller on your Mac or PC. Changes in speed and color can easily be made with your smartphone or tablet.

Quicklinks

Dimensions

106 mm x 146 mm x 11 mm
4.17 in x 5.75 in x 0.43 in
ControlDMX

Output: 2 x DMX 512 (1024 DMX Channels)
Input: 8 potential-free inputs binary configurable (255 Trigger)
Input Voltage Power Supply: External
5 - 6 VDC
Operating Temperature0 °C / +50 °C | 32 °F - 122°F
Housing

Glass-Touch Panel with color display,
for standard two gang back box
Housing Color(s)

Glass: White
Frame: Plastic, black

Ingress ProtectionIP20
Certification
Additional InformationRemote Control Apps for iOS | Android
  • Direct Color Control (also for White Channel)
  • Life Control for Color Palette, Speed and Dimming
  • Up to 500 scenes can be stored
  • Up to 10 different zones can be controlled simultaneously
  • Clock and Calendar Controller with up to 100 records integrated
  • Network- / USB-Interface
  • RS232 and http Trigger
Memory card: MicroSD Card
