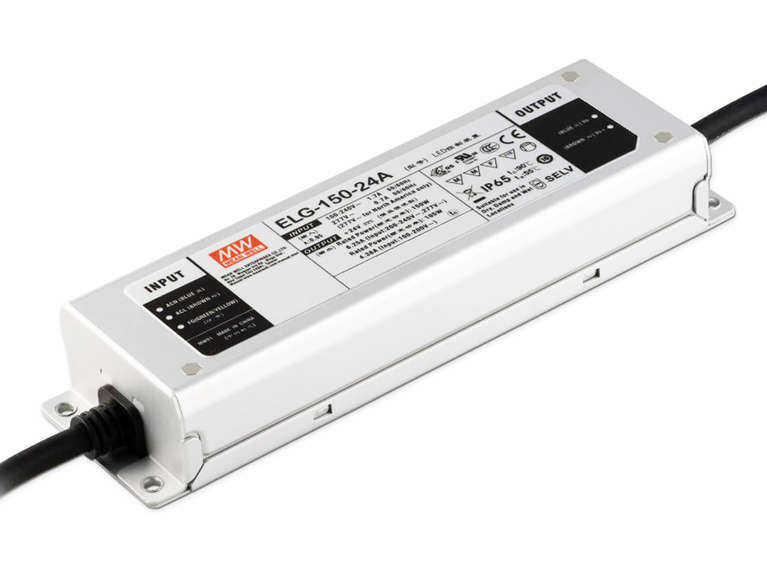

Power Supply DD Series

Power Supply DD Series

Quicklinks

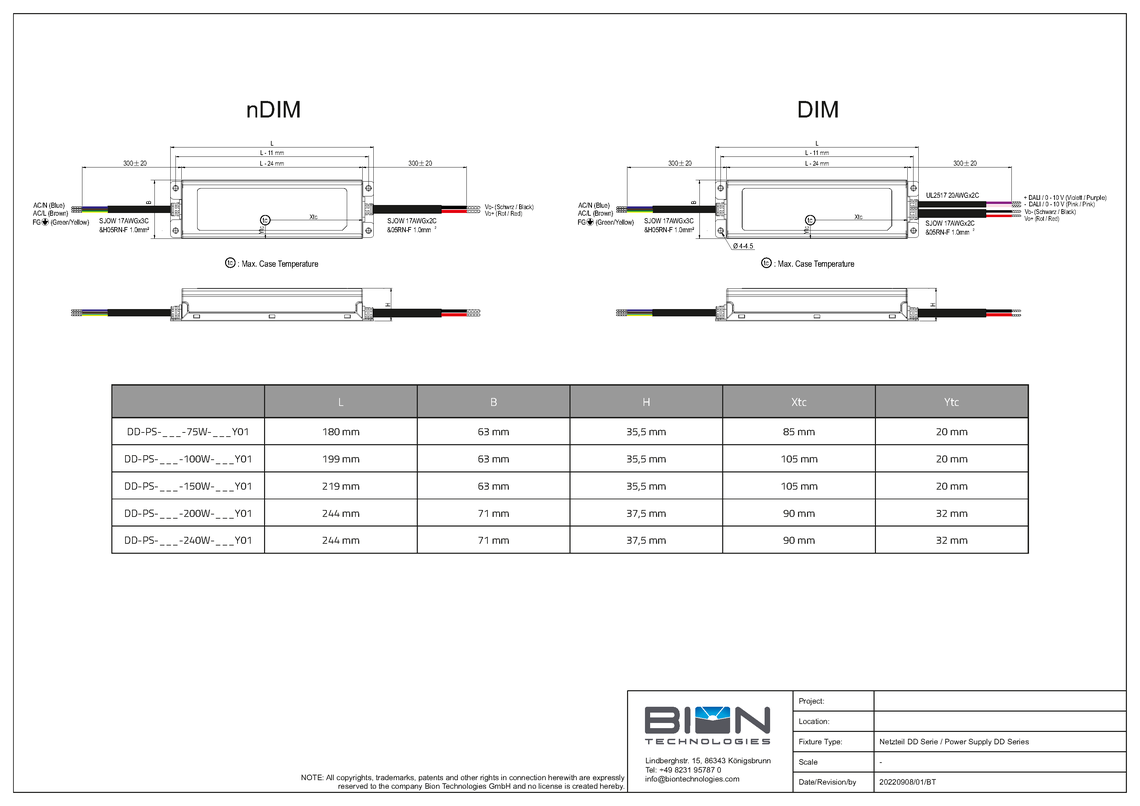

DimensionsL x B x H in technical drawing
Control0 - 10 V, DALI, POT
Input Voltage
100 - 240, 277 VAC (50 - 60 Hz) | 127 - 431 VDC
Inrush@230V:
DD 75 Cold start 50 A (tDauer = 350 µs measured at 50 % Ipeak)
DD 100 Cold start 60 A (tDauer = 850 µs measured at 50 % Ipeak)
DD 150 Cold start 65 A (tDauer = 550 µs measured at 50 % Ipeak)
DD 200 Cold start 60 A(tDauer = 510 µs measured at 50 % Ipeak)
DD 240 Cold start 60 A(tDauer = 510 µs measured at 50 % Ipeak)
Housingmetal housing
Housing Color(s)silver
Weightmax. 1,22 kg (DD-PS-NDIM-240W-36V-Y01)
Ingress ProtectionIP67
Environment
Certification

Your order code:

  Send request When the background gets green, your selection is complete!

Please choose from the options below.

* mandatory fields

DIMMING
  1. Non-dimmable
  2. Dimmable - 0 - 10 V
  3. Dimmable - DALI
  4. Dimmable - POT
POWER SUPPLY TYP
  1. 75W - 75 Watt
  2. 100W - 100 Watt
  3. 150W - 150 Watt
  4. 200W - 200 Watt
  5. 240W - 240 Watt
ENVIRONMENT
  1. 24V - 24 Volt
  2. 36V - 36 Volt
